Semiconductor & Electronics Equipment Enclosures
Sheet metal covers, control boxes and mounting parts for inspection, handling and electronics assembly equipment.
Drawing-based enclosure manufacturing
Inspection, handling and electronics assembly equipment needs accessible outer covers with controlled openings and repeatable panel fit. We focus on the fabricated enclosure and mounting parts around your equipment layout.
Parts we can review

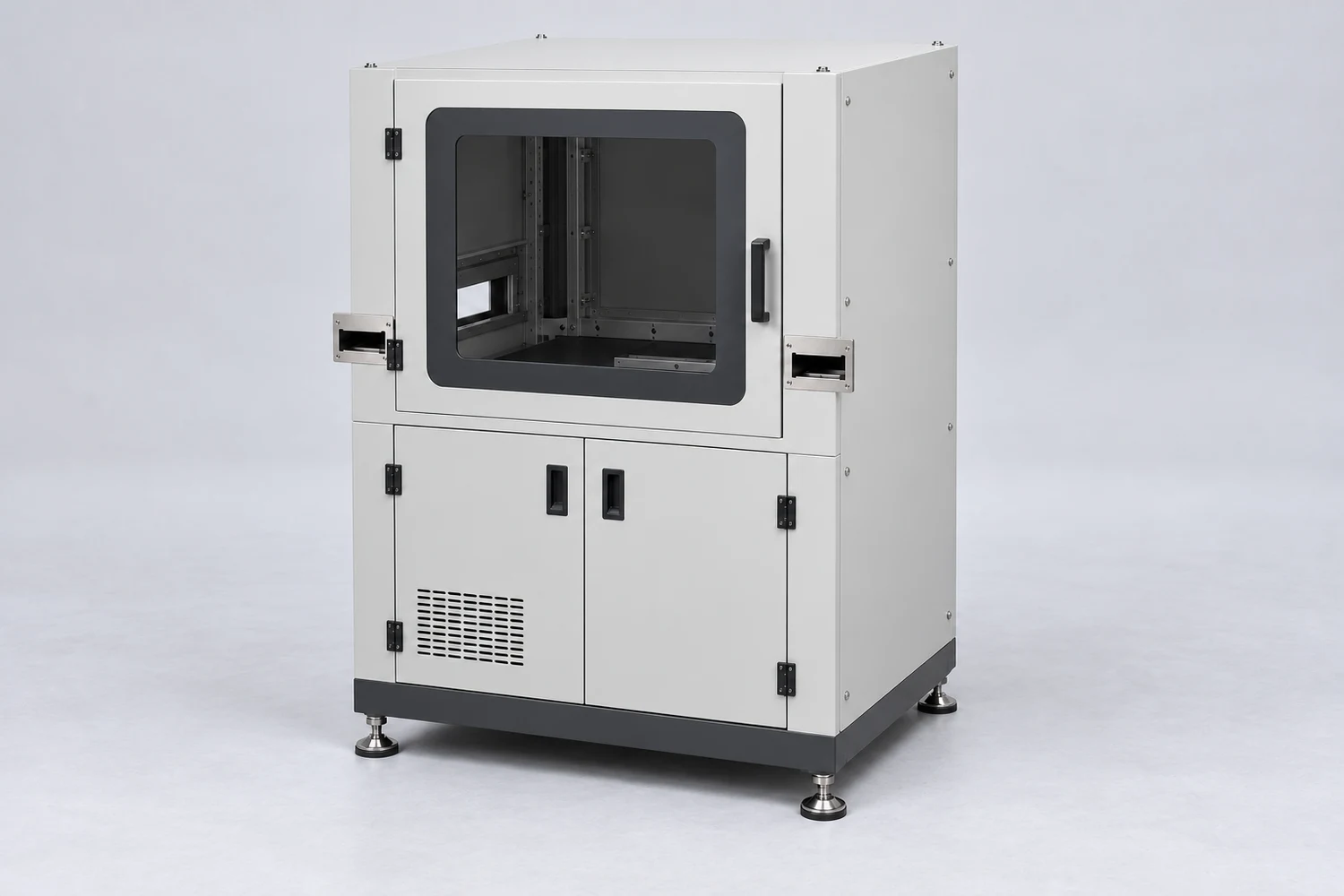

- Inspection-equipment outer covers
- Control boxes and removable service panels
- Mounting plates and internal supports
- Brackets for customer-specified assemblies
Key drawing inputs
- Equipment layout and installation envelope
- Observation-window opening dimensions
- Service-door and panel clearances
- Mounting datum and hole positions
- Surface finish and handling requirements
- Quantity and drawing revision
This category covers ordinary sheet metal structural parts. Precision vacuum chambers, pressure-containing parts, semiconductor process modules and cleanroom certification are outside the illustrated scope.
From sample review to batch production
The production route is agreed from the drawing: laser cutting or CNC punching, bending, joining, hardware insertion and finishing. Powder coating and silk-screen printing can be included where specified. Sample approval establishes the reference for dimensions, panel fit and appearance.
Share 2D drawings and a STEP model where available, together with quantity, material, finish and inspection requirements. Critical dimensions, cutouts and assembly interfaces should be identified before production.
View quality control and inspectionProject questions
Do you supply the semiconductor inspection equipment itself?
No. This service covers the external housing and specified sheet metal parts. Optics, motion systems, controls and process equipment remain part of the customer's machine design.
Can you work from a 3D STEP file?
Yes. The inquiry form accepts STEP, STP, DWG, DXF, IGES, STL, PDF and ZIP files. Include a dimensioned drawing with tolerances, material and finish requirements for a complete review.
Can you supply powder-coated parts with hardware installed?
Fabrication, coating, printing, hardware insertion and packaging can be combined when specified in the agreed project scope.
Discuss your enclosure project
Send the drawing, target quantity and required finish for a focused manufacturing review.
